PVC Pipe Making And Extrusion Machine

• Automation Grade
• Automatic

• Dimension (L*W*H)
• 6500 x 1500 x 2200 mm Millimeter (mm)

• Features
• Energy-efficient, Low maintenance, Digital control panel, High output rate

• Frequency
• 50/60 Hz Hertz (HZ)

• Length
• Customizable up to 6 meters Meter (m)

• Linear Speed
• 1-10 m/min

• Machine Weight
• Approx. 2500 kg Kilograms (kg)

• Material
• Mild Steel with anti-corrosive coating

• Motor Power
• 22 kW to 55 kW Kilowatt (kW)

• Noise Level
• < 75 dB db

• Pipe Diameter
• 16 mm to 315 mm Millimeter (mm)

• Pipe Material
• PVC (Polyvinyl Chloride)

• Pipe Thickness
• 0.5 mm to 15 mm Millimeter (mm)

• Production Capacity
• 110 kg/h to 350 kg/h Kg/hr

• Roller Material
• High-grade Stainless Steel

• Usage & Applications
• Manufacturing of water supply pipes, drainage pipes, agricultural irrigation, and conduit pipes

• Voltage
• 380 V Volt (v)

• Welding
• High-frequency automatic welding

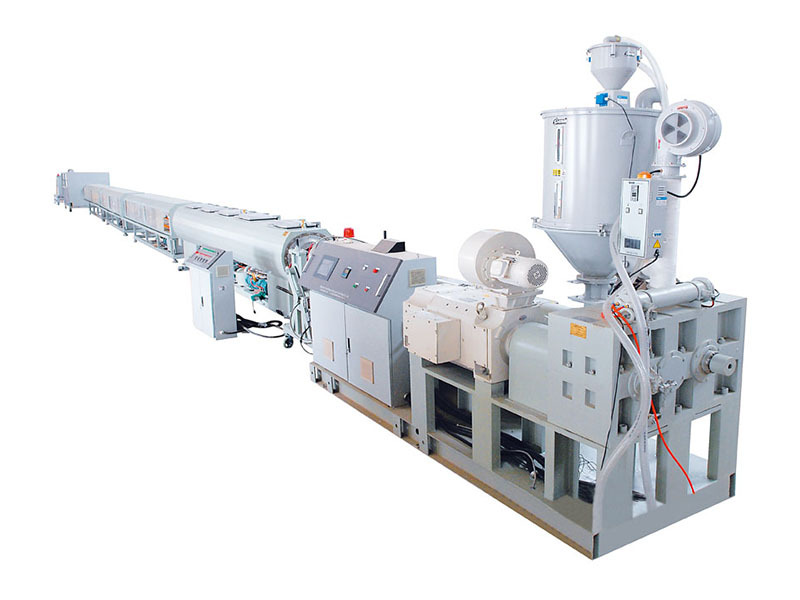

• Automation Grade
• Automatic

• Dimension (L*W*H)
• approx. 12m x 2m x 2.2m

• Features
• Consistent pipe thickness, energy efficient, durable construction, PLC control

• Frequency
• 50 Hz

• Length
• Custom as per requirement

• Linear Speed
• 0.5 - 10 m/min

• Machine Weight
• 3500 kg

• Material
• Alloy Steel / SS

• Motor Power
• 15 kW

• Noise Level
• Below 85 dB

• Pipe Diameter
• 20 mm - 110 mm

• Pipe Material
• HDPE

• Pipe Thickness
• 2 mm - 6 mm

• Production Capacity
• 50 - 120 kg/hr

• Roller Material
• High-grade steel

• Usage & Applications
• HDPE water/gas pipe production

• Voltage
• 380 V

• Welding
• Not Applicable (extrusion type)

• Automation Grade
• Automatic

• Dimension (L*W*H)
• 7500 mm x 1800 mm x 2100 mm

• Features
• Energy efficient, continuous operation, rapid changeover

• Frequency
• 50 Hz

• Length
• Adjustable as required

• Linear Speed
• 10-18 m/min

• Machine Weight
• Approx. 2.2 Tons

• Material
• Mild Steel structure with stainless steel contact parts

• Motor Power
• 15 hp (Extruder drive)

• Noise Level
• Below 78 dB

• Pipe Diameter
• 16 mm - 110 mm

• Pipe Material
• LLDPE

• Pipe Thickness
• 1 mm - 8 mm

• Production Capacity
• 50 kg/hr

• Roller Material
• Stainless Steel

• Usage & Applications
• Manufacture of LLDPE pipes for water supply, irrigation, cable ducting

• Voltage
• 380 V

• Welding
• Not Applicable (extrusion)

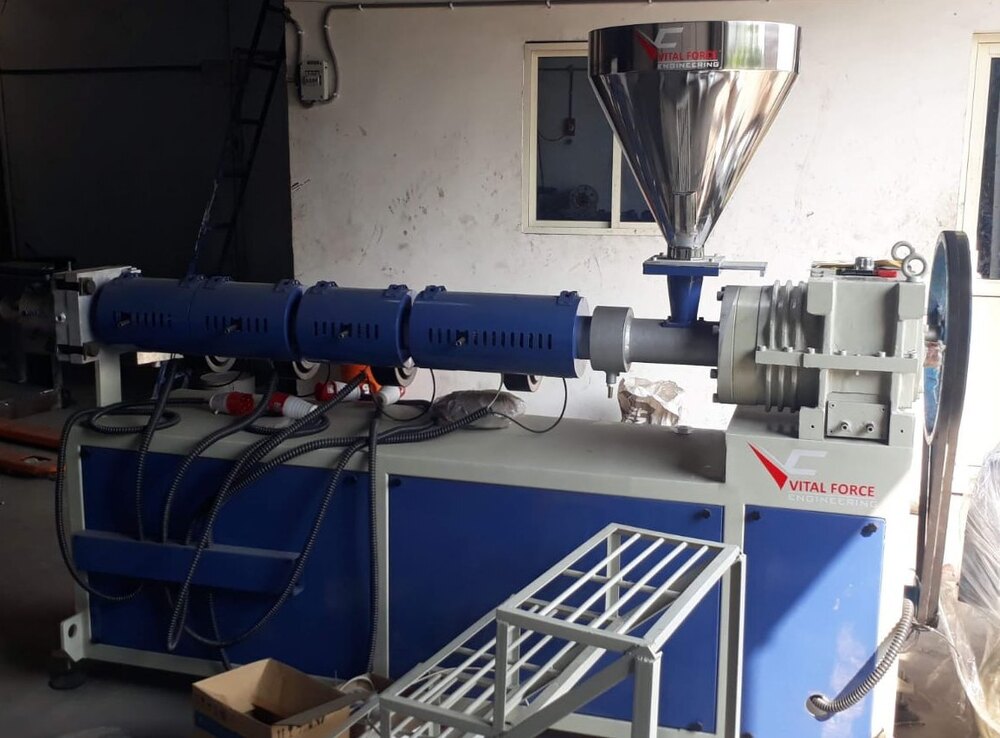

• Automation Grade
• Automatic

• Dimension (L*W*H)
• Approx. 15 x 3 x 3 m

• Features
• Single screw, stable output, easy operation, low maintenance

• Frequency
• 50 Hz

• Length
• Customizable

• Linear Speed
• 12-20 m/min (variable)

• Machine Weight
• Approx. 3500 kg

• Material
• Mild Steel/Alloy Steel (Frame)

• Motor Power
• 40 hp

• Noise Level
• <75 dB

• Pipe Diameter
• 65 mm

• Pipe Material
• PVC

• Pipe Thickness
• Customizable as per requirement

• Production Capacity
• 40 to 80 kg/hrs

• Roller Material
• Stainless Steel

• Usage & Applications
• Casing pipe extrusion for water supply, borewell, and conduit applications

• Voltage
• Three Phase

• Welding
• Not Applicable (Extrusion Process)

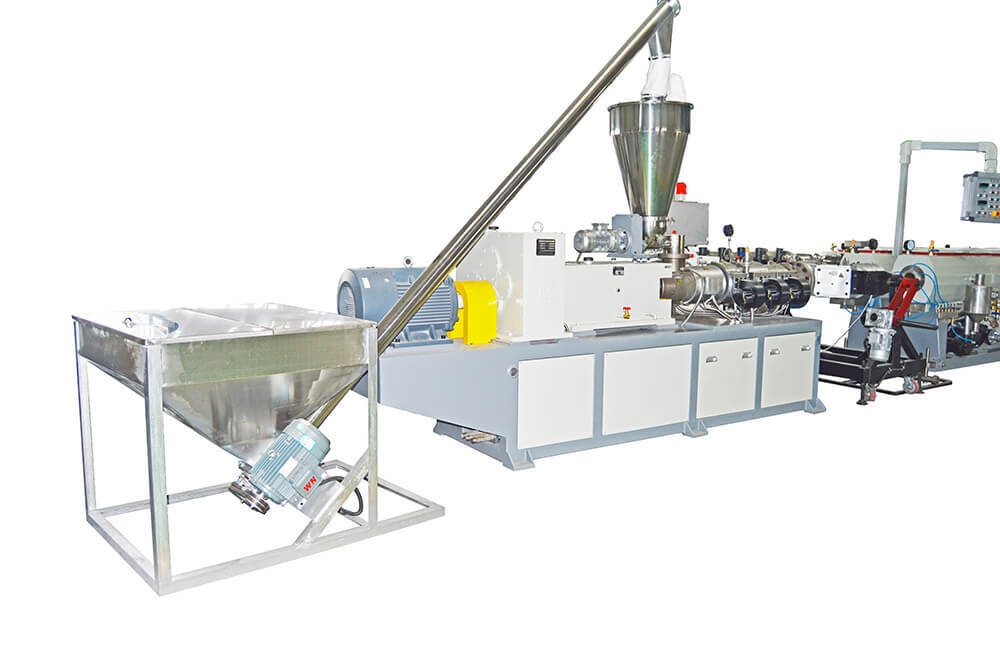

• Automation Grade
• Automatic

• Features
• Three-layer extrusion, high speed

• Motor Power
• 85 hp

• Pipe Diameter
• 20 mm to 315 mm

• Pipe Material
• HDPE

• Production Capacity
• 250 to 450 kg/hrs

• Usage & Applications
• HDPE pipe manufacturing

• Automation Grade
• Automatic

• Pipe Material
• PVC

• Production Capacity
• 50 kg/hr
