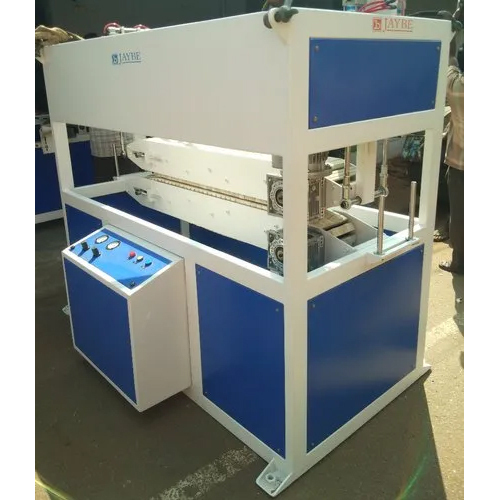

PVC Casing Pipe Machine

PVC Casing Pipe Machine Specification

Machine Weight
Approx. 3500 kg

Frequency
50 Hz

Linear Speed
12-20 m/min (variable)

Motor Power
40 hp

Features
Single screw, stable output, easy operation, low maintenance

Automation Grade
Automatic

Length
Customizable

Pipe Material
PVC

Production Capacity
40 to 80 kg/hrs

Noise Level
<75 dB

Pipe Diameter
65 mm

Welding
Not Applicable (Extrusion Process)

Pipe Thickness
Customizable as per requirement

Voltage
Three Phase

Roller Material
Stainless Steel

Usage & Applications
Casing pipe extrusion for water supply, borewell, and conduit applications

Material
Mild Steel/Alloy Steel (Frame)

Dimension (L*W*H)
Approx. 15 x 3 x 3 m

Mould Material
Alloy Steel

Main Shaft Speed
Adjustable

Drive System
AC Motor Drive

Extruder Build
Heavy-duty

Control Panel
PLC Based

Heating Zones
Four zones

Pipe Color
Customizable

Pipe End Finish
Smooth cut finish

Screw Type
Single screw

Cooling Method
Water bath cooling

PVC Casing Pipe Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
AHMEDABAD

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Delivery Time
5-10 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About PVC Casing Pipe Machine

We are one of the leading Manufacturers and Supplier of Twin Screw Extruder, Die Heads, Die Heads, Hopper Loader, Vacuum Calibration Tank, etc. We offer these at market-leading rates.

Additional Information:

Production Capacity: 40 to 80 kg/hrs
Delivery Time: 45 days

Precision Extrusion for Versatile Applications

Engineered to deliver high-quality PVC casing pipes with a smooth cut finish, this machine offers fully customizable pipe characteristics. Its advanced PLC-based controls and adjustable heating and speed zones ensure reliable performance, making it suitable for a wide range of water supply, borewell, and electrical conduit applications. The system is designed for exporters, manufacturers, service providers, and suppliers.

Robust & Reliable: Built for Industrial Demands

Manufactured with a durable mild steel/alloy steel frame and alloy steel extruder, this machine withstands intense industrial operation. The AC motor drive and stainless steel rollers provide stable, efficient output, while the water bath cooling maintains product consistency. Ideal for continuous operation, it combines low maintenance needs with user-friendly controls.

FAQ's of PVC Casing Pipe Machine:

Q: How does the water bath cooling system benefit the PVC pipe extrusion process?

A: The water bath cooling system rapidly cools the extruded PVC pipes, helping to maintain precise dimensions and a smooth surface finish. This process minimizes internal stress, preventing deformation, and ensures consistent product quality during high-speed production.

Q: What is the maximum pipe diameter and thickness this machine can handle?

A: The machine can extrude PVC pipes with a standard diameter of 65 mm. The pipe thickness is customizable according to specific requirements, allowing for flexibility in a range of applications.

Q: When is it ideal to use this machine for industrial production?

A: This PVC casing pipe machine is best suited for high-demand industrial settings where continuous production and stable output are essential, such as in the manufacturing of pipes for water supply, borewell installations, and electrical conduits.

Q: Where can the customized pipes produced by this machine be used?

A: The pipes manufactured by this machine are suitable for water supply systems, agricultural borewell casings, and protective electrical or communication conduits. Its customizable dimensions and colors allow for diverse application across infrastructure projects and construction sites.

Q: What is the process flow in this PVC casing pipe machine?

A: The process involves feeding raw PVC material into the heavy-duty single-screw extruder, which is heated in four zones for optimal melt quality. The extruded pipe is shaped using an alloy steel mould, then cooled instantly in the water bath, cut with precision, and finally processed on stainless steel rollers for a smooth finish.

Q: What are the main benefits of the PLC-based control panel?

A: The PLC-based control panel provides user-friendly operation, precise process control, and easy adjustment of key parameters such as heating zones and shaft speed. This automation results in consistent output quality and reduces the need for manual intervention, leading to greater efficiency.

Q: How does the machine ensure low maintenance and operational stability?

A: Designed with a single screw extruder and robust AC motor drive system, the machine offers straightforward operation with minimal moving parts and wear points. Combined with quality materials like alloy steel and stainless steel rollers, these features reduce breakdowns and routine maintenance, ensuring reliable, stable performance.
